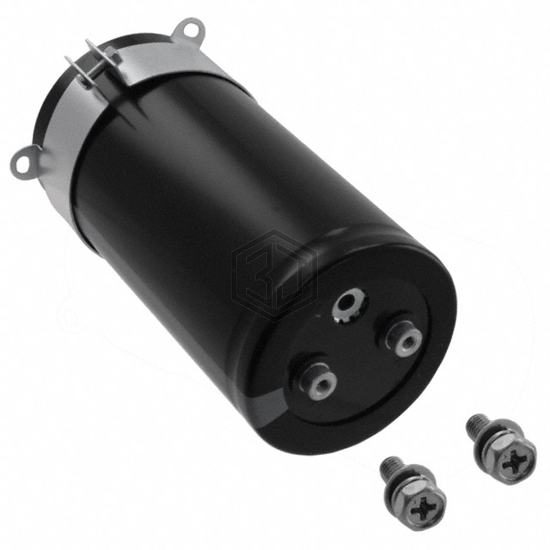

CAP ALUM 2700UF 20% 500V SCREW
LNK2H272MSEH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2700UF 20% 500V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Screw Terminals.
In Stock: 3,818
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 10.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 14.98 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 4.331" (110.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450LSU2700M64X139 | Rubycon | CAP ALUM 2700UF 20% 450V SCREW | 95% | View |
| ALS81H272QC450 | KEMET | CAP ALUM 2700UF 20% 450V SCREW | 93% | View |
| ALS71C272LM550 | KEMET | CAP ALUM 2700UF 20% 550V SCREW | 92% | View |
| ERWL401LGC272MDB5U | United Chemi-Con | CAP ALUM 2700UF 20% 400V SCREW | 90% | View |
| ERHB631LGC272MED0U | United Chemi-Con | CAP ALUM 2700UF 20% 630V SCREW | 85% | View |
| LNX2J272MSEJBN | Nichicon | CAP ALUM 2700UF 20% 630V SCREW | 85% | View |
Submit your RFQ for LNK2H272MSEH and get a quote within 24 hours.
