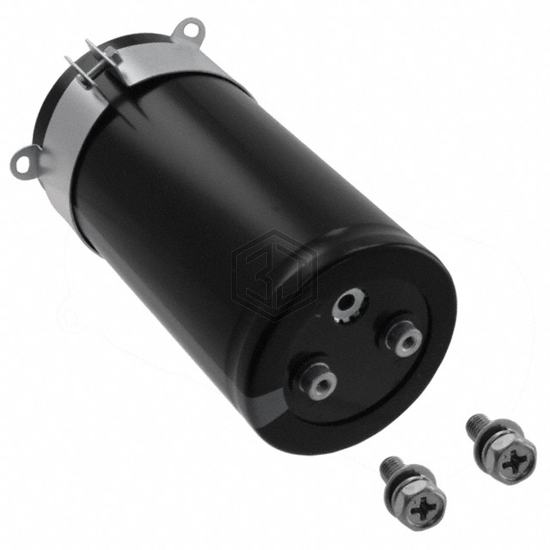

CAP ALUM 6800UF 20% 400V SCREW
LNK2G682MSEH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,919
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 19.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 26.88 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 5.118" (130.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DCMC682M400DF5H | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 400V SCREW | 100% | View |
| LNU2G682MSEH | Nichicon | CAP ALUM 6800UF 20% 400V SCREW | 99% | View |
| B43564A9688M000 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 400V SCREW | 96% | View |
| LQR2V682MSEHBN | Nichicon | CAP ALUM 6800UF 20% 350V SCREW | 88% | View |
| LNT2V682MSEHBB | Nichicon | CAP ALUM 6800UF 20% 350V SCREW | 81% | View |
| LNC2H682MSEJBN | Nichicon | CAP ALUM 6800UF 20% 500V SCREW | 72% | View |
Submit your RFQ for LNK2G682MSEH and get a quote within 24 hours.
