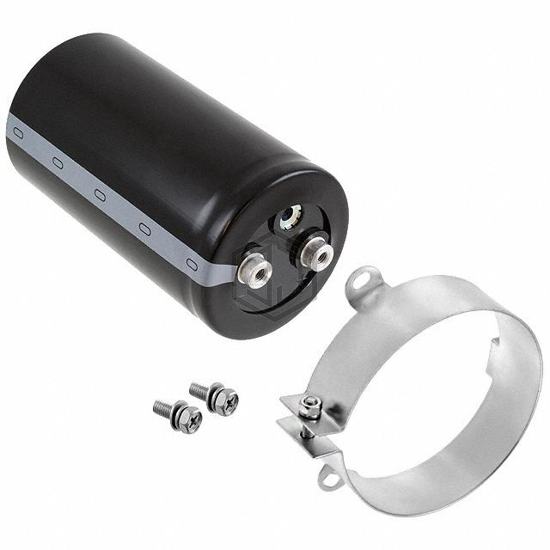

CAP ALUM 3900UF 20% 400V SCREW
LNK2G392MSEG is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3900UF 20% 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,088
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 12.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 17.92 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.126" (28.60mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 4.528" (115.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNK2V392MSEG | Nichicon | CAP ALUM 3900UF 20% 350V SCREW | 96% | View |
| LNX2G392MSEGBN | Nichicon | CAP ALUM 3900UF 20% 400V SCREW | 93% | View |
| B43564A4398M3 | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 350V SCREW | 91% | View |
| MAL250119392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 500V SCREW | 90% | View |
| LNC2V392MTEG | Nichicon | CAP ALUM 3900UF 20% 350V SCREW | 89% | View |
| ALS70A392NF550 | KEMET | CAP ALUM 3900UF 20% 550V SCREW | 88% | View |
Submit your RFQ for LNK2G392MSEG and get a quote within 24 hours.
