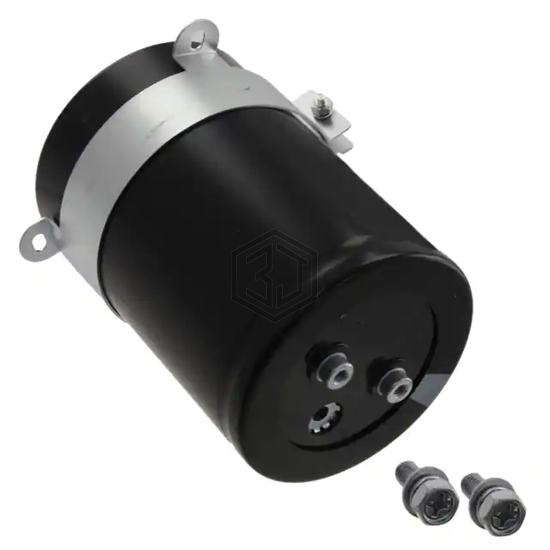

CAP ALUM 10000UF 20% 400V SCREW
LNK2G103MSEJ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,626
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 24.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 33.88 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.543" Dia (90.00mm) |
| Height - Seated (Max) | 5.118" (130.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E37L401CPN103MFE3U | United Chemi-Con | CAP ALUM 10000UF 20% 400V SCREW | 97% | View |
| LNK2G103MSEHBN | Nichicon | CAP ALUM 10000UF 20% 400V SCREW | 96% | View |
| ALS71A103QM400 | KEMET | CAP ALUM 10000UF 20% 400V SCREW | 94% | View |
| E37F351CPN103MFB7U | United Chemi-Con | CAP ALUM 10000UF 20% 350V SCREW | 94% | View |
| ERWE401LGC103MFF5U | United Chemi-Con | CAP ALUM 10000UF 20% 400V SCREW | 92% | View |
| ALS81G103NT450 | KEMET | CAP ALUM 10000UF 20% 450V SCREW | 84% | View |
Submit your RFQ for LNK2G103MSEJ and get a quote within 24 hours.
