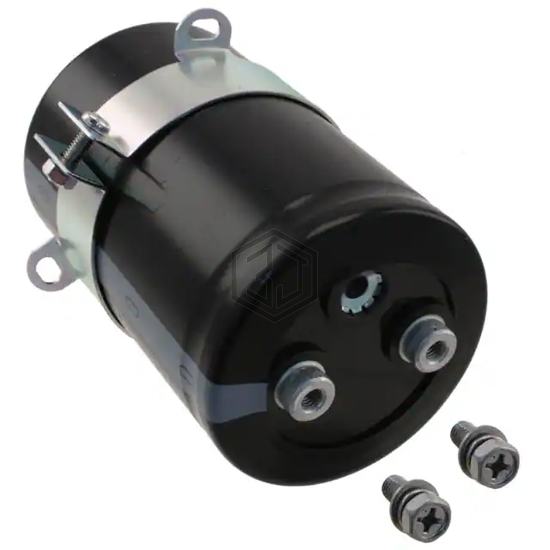

CAP ALUM 4700UF 20% 450V SCREW
LNC2W472MSEG is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,633
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 19.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 26.88 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.126" (28.60mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 5.827" (148.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ETOR451CTH472MEG8U | Chemi-Con | CAP ALUM 4.7MF 20% 450V SCREW CH | 100% | View |
| B43713A5478M000 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 450V SCREW | 94% | View |
| MAL250177472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 450V SCREW | 89% | View |
| MAL210236472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 400V SCREW | 87% | View |
| ALS71C472QH550 | KEMET | CAP ALUM 4700UF 20% 550V SCREW | 84% | View |
| ALS71A472NF500 | KEMET | CAP ALUM 4700UF 20% 500V SCREW | 84% | View |
Submit your RFQ for LNC2W472MSEG and get a quote within 24 hours.
