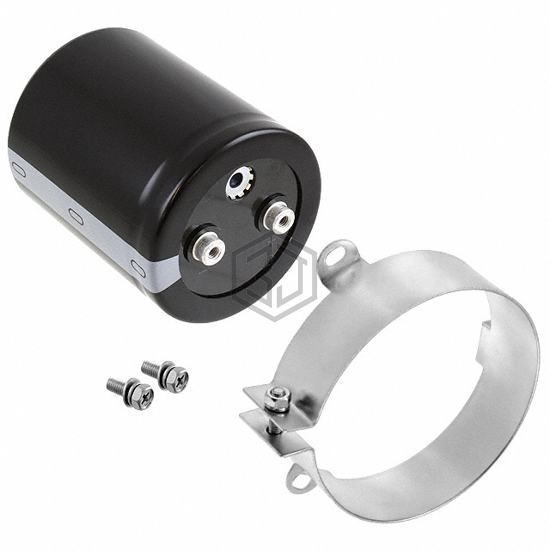

CAP ALUM 5600UF 20% 350V SCREW
LNC2V562MSEH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 5600UF 20% 350V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,256
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 17.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 24.64 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 3.661" (93.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNY2G562MSEH | Nichicon | CAP ALUM 5600UF 20% 400V SCREW | 96% | View |
| B43704A9568M000 | EPCOS - TDK Electronics | CAP ALUM 5600UF 20% 400V SCREW | 91% | View |
| DCMC562T400DE5H | Cornell Dubilier Electronics (CDE) | CAP ALUM 5600UF 400V SCREW | 91% | View |
| LNUN7562MSEJBN | Nichicon | CAP ALUM 5600UF 20% 525V SCREW | 87% | View |
| B43705B9568M000 | EPCOS - TDK Electronics | CAP ALUM 5600UF 20% 400V SCREW | 86% | View |
| E36D401HPN562MED0U | United Chemi-Con | CAP ALUM 5600UF 20% 400V SCREW | 82% | View |
