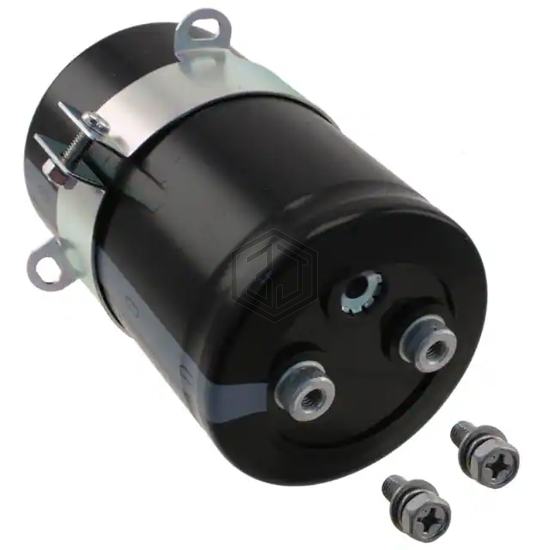

CAP ALUM 4700UF 20% 350V SCREW
LNC2V472MSEG is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 350V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,162
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 16.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 22.96 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.126" (28.60mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 4.055" (103.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36F401CDN472MDD8U | Chemi-Con | CAP ALUM 4.7MF 20% 400V SCREW CH | 91% | View |
| B43723A4478M600 | EPCOS - TDK Electronics | SCREW TERMINALS 4700UF 350V | 91% | View |
| ALS31C472NP415 | KEMET | CAP ALUM SCREW TERM 85C | 90% | View |
| DCMC472T450DF2E | Cornell Dubilier Electronics (CDE) | CAP ALUM 4700UF 450V SCREW | 84% | View |
| MAL210263472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 250V SCREW | 84% | View |
| B43706A5478M600 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 450V SCREW | 75% | View |
