CAP ALUM 3300UF 20% 350V SCREW

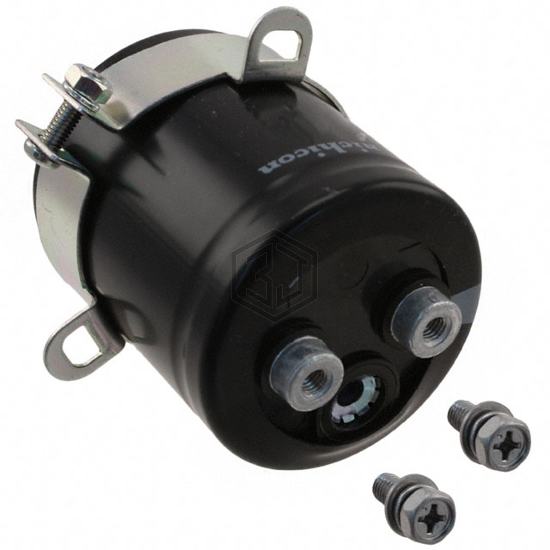

LNC2V332MSEF is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 350V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Screw Terminals.
In Stock: 3,204
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 13.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 19.04 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 4.646" (118.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL210258332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 385V SCREW | 96% | View |
| 3186GD332M400MPC1 | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 20% 400V SCREW | 91% | View |
| 3186FE332M400MPC1 | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 20% 400V SCREW | 91% | View |
| MAL250116332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 400V SCREW | 88% | View |
| E37F421CPN332MDA5U | United Chemi-Con | CAP ALUM 3300UF 20% 420V SCREW | 87% | View |
| ALS80C332MF450 | KEMET | CAP ALUM 3300UF 20% 450V SCREW | 86% | View |
