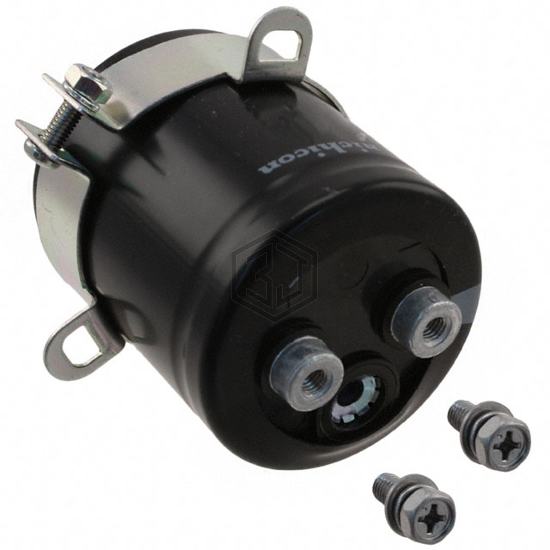

CAP ALUM 2200UF 20% 350V SCREW
LNC2V222MSEF is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 350V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,234
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 11.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 16.66 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 3.465" (88.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36D451HLN222QEA5M | United Chemi-Con | CAP ALUM 2200UF 450V SCREW | 84% | View |
| E36D451CDN222MEA5U | United Chemi-Con | CAP ALUM 2200UF 20% 450V SCREW | 84% | View |
| E33F351CPN222MD92Q | Chemi-Con | SCREW TERMINAL CAPCITOR | 84% | View |
| E37F451CPN222MD92U | United Chemi-Con | CAP ALUM 2200UF 20% 450V SCREW | 80% | View |
| B43456A5228M003 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 450V SCREW | 78% | View |
| E36D451HPN222MDA5U | United Chemi-Con | CAP ALUM 2200UF 20% 450V SCREW | 66% | View |
Submit your RFQ for LNC2V222MSEF and get a quote within 24 hours.
