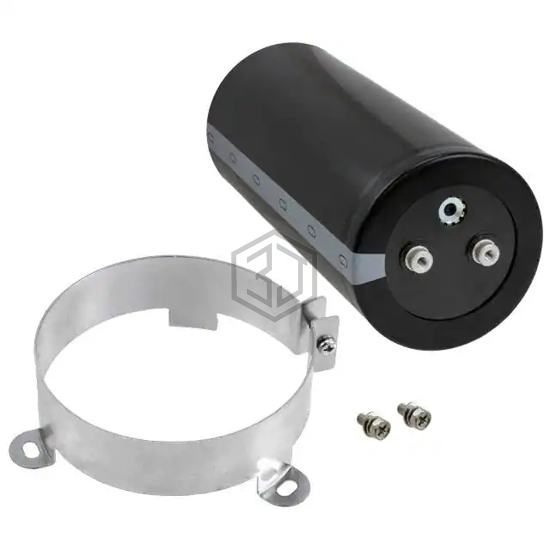

CAP ALUM 4700UF 20% 500V SCREW
LNC2H472MSEJ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 500V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,684
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 23.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 33.04 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.543" Dia (90.00mm) |
| Height - Seated (Max) | 4.252" (108.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43713A6478M000 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 500V SCREW | 90% | View |
| LNC2W472MSEH | Nichicon | CAP ALUM 4700UF 20% 450V SCREW | 87% | View |
| MAL210226472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 400V SCREW | 79% | View |
| ALS30A472NJ450 | KEMET | CAP ALUM 4700UF 20% 450V SCREW | 77% | View |
| LNY2W472MSEH | Nichicon | CAP ALUM 4700UF 20% 450V SCREW | 77% | View |
| MAL210436472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 400V SCREW | 76% | View |
Submit your RFQ for LNC2H472MSEJ and get a quote within 24 hours.
