CAP ALUM 6800UF 20% 400V SCREW

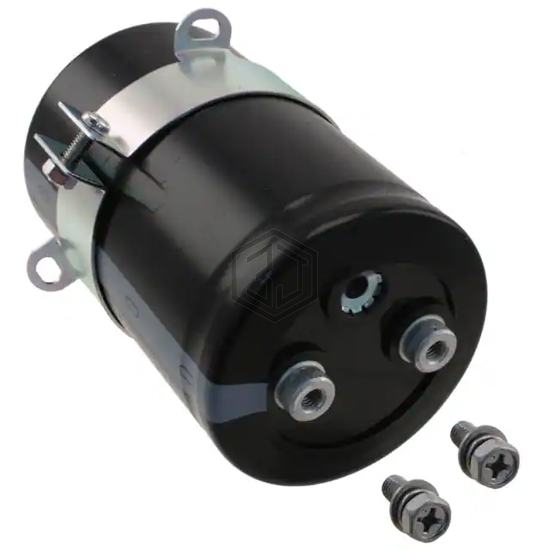

LNC2G682MSEG is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 3,262
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 23.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 33.32 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.126" (28.60mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 6.614" (168.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E37F351CPN682MEB7U | United Chemi-Con | CAP ALUM 6800UF 20% 350V SCREW | 85% | View |
| MAL250054682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 420V SCREW | 83% | View |
| ALS71C682QM500 | KEMET | CAP ALUM 6800UF 20% 500V SCREW | 83% | View |
| ALS70A682QM500 | KEMET | CAP ALUM 6800UF 20% 500V SCREW | 83% | View |
| ALS80C682QP500 | KEMET | CAP ALUM 6800UF 20% 500V SCREW | 81% | View |
| MAL250035682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 350V SCREW | 75% | View |
Submit your RFQ for LNC2G682MSEG and get a quote within 24 hours.
