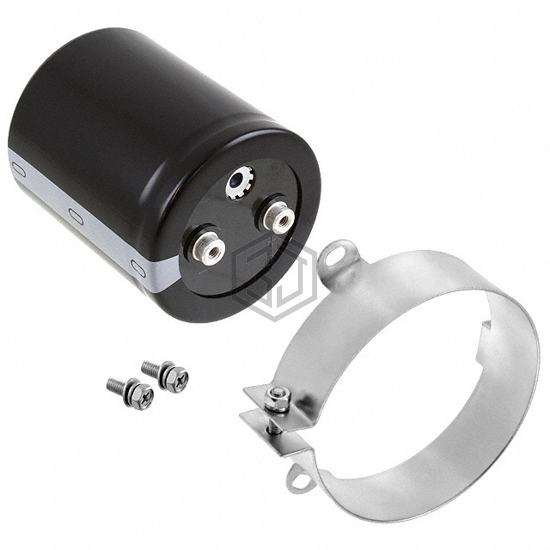

CAP ALUM 4700UF 20% 400V SCREW
LNC2G472MSEH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 3,601
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 18.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 25.62 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 3.661" (93.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL210248472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 385V SCREW | 95% | View |
| E36L451CGN472MDE3U | Chemi-Con | CAP ALUM 4.7MF 20% 450V SCREW CH | 92% | View |
| E36L451CSN472ME97U | Chemi-Con | CAP ALUM 4.7MF 20% 450V SCREW CH | 92% | View |
| E37L401CPN472MDE3M | United Chemi-Con | CAP ALUM 4700UF 20% 400V SCREW | 90% | View |
| B43742A5478M000 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 450V SCREW | 88% | View |
| ALS81C472QH500 | KEMET | CAP ALUM 4700UF 20% 500V SCREW | 83% | View |
