CAP ALUM 120UF 20% 450V SNAP

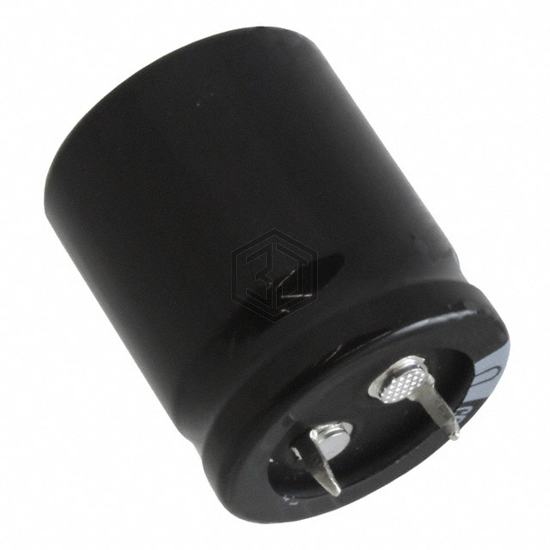

LLS2W121MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 7,456
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.09 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.5587 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LLS2W121MELB | Nichicon | CAP ALUM 120UF 20% 450V SNAP | 99% | View |
| B43601B5127M87 | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 450V SNAP | 98% | View |
| B43540A5127M87 | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 450V SNAP | 98% | View |
| UCY2G121MHD3 | Nichicon | CAP ALUM 120UF 20% 400V RADIAL | 88% | View |
| 420CXW120MEFR18X31.5 | Rubycon | CAP ALUM 120UF 20% 420V RADIAL | 84% | View |
| 400SXG120MEFCSN22X30 | Rubycon | CAP ALUM 120UF 20% 400V SNAP | 78% | View |
Submit your RFQ for LLS2W121MELA and get a quote within 24 hours.
