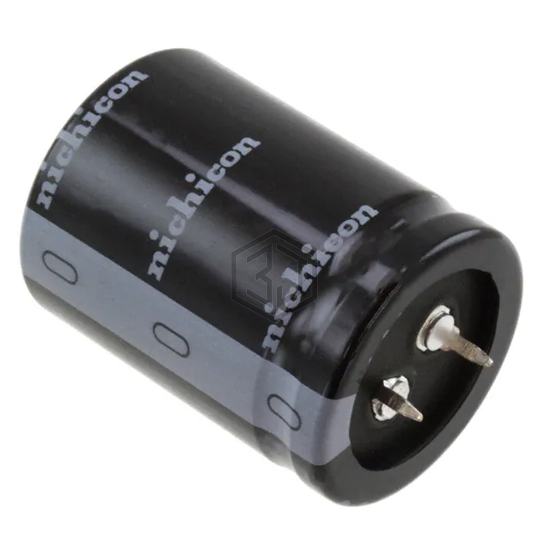

CAP ALUM 390UF 20% 400V SNAP
LLS2G391MELB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 134
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.26 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.2318 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
Submit your RFQ for LLS2G391MELB and get a quote within 24 hours.
