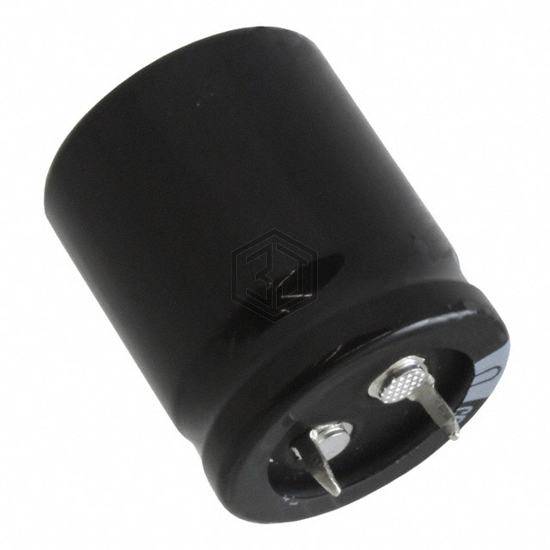

CAP ALUM 560UF 20% 200V SNAP
LLS2D561MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 1,408
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.15 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.225 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43601A2567M67 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 98% | View |
| 180MXG560MEFCSN22X40 | Rubycon | CAP ALUM 560UF 20% 180V SNAP | 93% | View |
| MAL225783561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 250V SNAP | 92% | View |
| B43231D1567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 160V SNAP | 92% | View |
| LGU2D561MELB | Nichicon | CAP ALUM 560UF 20% 200V SNAP | 88% | View |
| B43508A9567M2 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 68% | View |
Submit your RFQ for LLS2D561MELA and get a quote within 24 hours.
