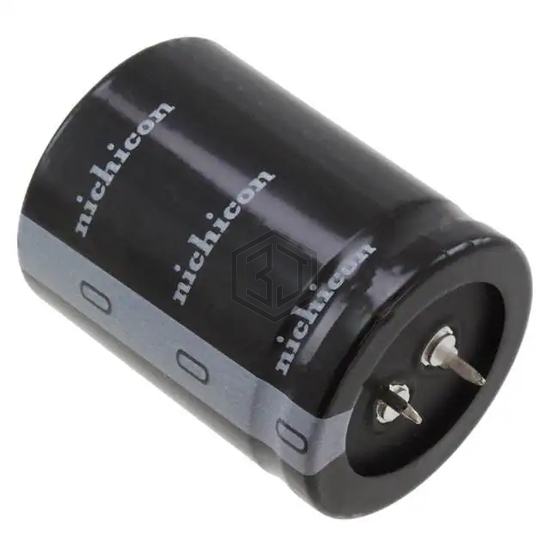

CAP ALUM 5600UF 20% 100V SNAP
LLS2A562MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 5600UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 5,680
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.88 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.762 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESMH101VSN562MA45S | United Chemi-Con | CAP ALUM 5600UF 20% 100V SNAP | 99% | View |
| EKMH101VNN562MA63U | United Chemi-Con | CAP ALUM 5600UF 20% 100V SNAP | 84% | View |
| LLS1K562MELC | Nichicon | CAP ALUM 5600UF 20% 80V SNAP | 82% | View |
| 80USG5600MEFCSN30X45 | Rubycon | CAP ALUM 5600UF 20% 80V SNAP | 81% | View |
| MAL215882562E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 5600UF 20% 80V SNAP | 76% | View |
| 80MXC5600MEFC30X45 | Rubycon | CAP ALUM 5600UF 20% 80V SNAP | 72% | View |
Submit your RFQ for LLS2A562MELC and get a quote within 24 hours.
