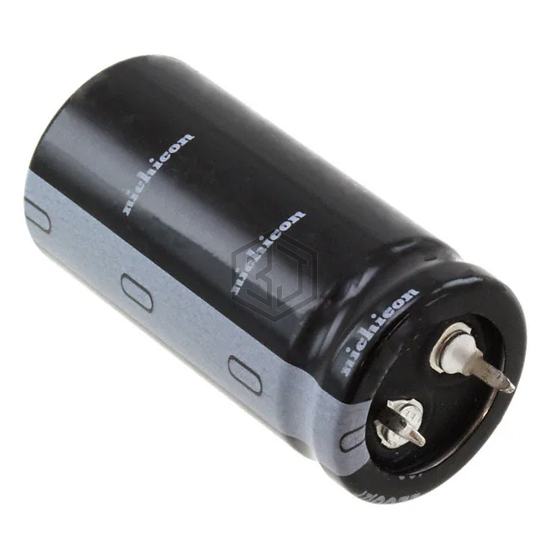

CAP ALUM 2200UF 20% 100V SNAP
LLS2A222MELZ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 7,679
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.15 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.6225 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
LLS2A222MELZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 228LBB100M2EC | Cornell Dubilier / Illinois Capacitor | CAP ALUM 2200UF 20% 100V SNAP | 98% | View |
| SLPX222M100C7P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 100V SNAP | 97% | View |
| MAL214690225E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 35V RADIAL | 65% | View |
| EEU-FK1V222B | Panasonic Electronic Components | CAP ALUM 2200UF 20% 35V RAD TH | 64% | View |
| RXK222M1VBK-1632S | SURGE | CAP ALUM 2200UF 20% 35V RADIAL | 63% | View |
| UBT1V222MHD | Nichicon | CAP ALUM 2200UF 20% 35V RADIAL | 60% | View |
Submit your RFQ for LLS2A222MELZ and get a quote within 24 hours.
