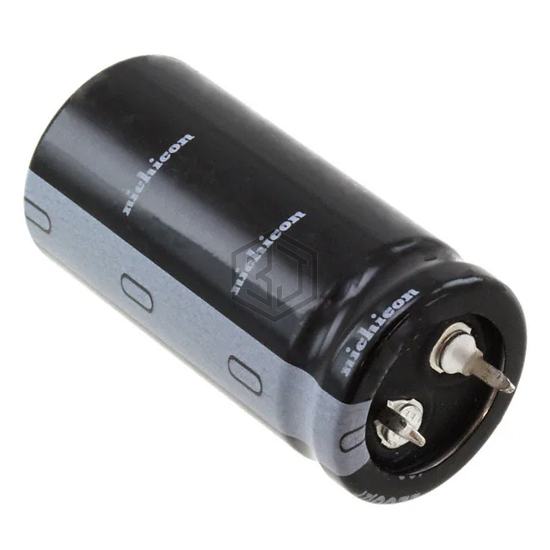

CAP ALUM 8200UF 20% 35V SNAP
LLS1V822MELZ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 8200UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 6,258
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.47 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.9905 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKS1V822MESZ | Nichicon | CAP ALUM 8200UF 20% 35V SNAP | 92% | View |
| EKMH500VNN822MA35U | United Chemi-Con | CAP ALUM 8200UF 20% 50V SNAP | 88% | View |
| MAL215841822E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 8200UF 20% 50V SNAP | 82% | View |
| ESMH500VNN822MR40U | United Chemi-Con | CAP ALUM 8200UF 20% 50V SNAP | 80% | View |
| MAL215855822E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 8200UF 20% 16V SNAP | 68% | View |
| THAS822M016AB0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 16V FLATPACK | 56% | View |
Submit your RFQ for LLS1V822MELZ and get a quote within 24 hours.
