CAP ALUM 4700UF 20% 35V SNAP

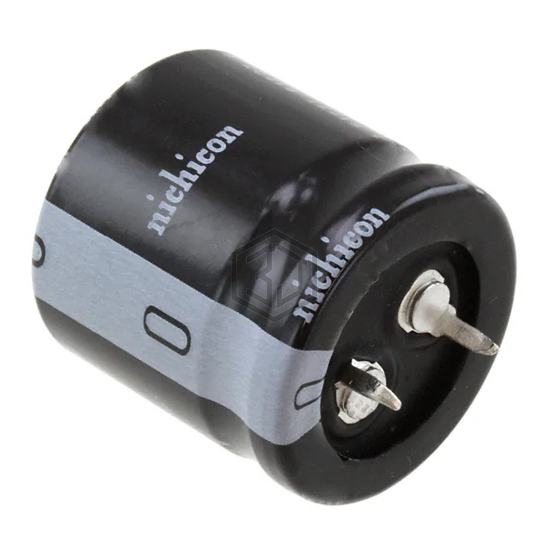

LLS1V472MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 4,326
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.43 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.7945 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214666472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 25V RADIAL | 83% | View |
| LKG1H472MESYAK | Nichicon | CAP ALUM 4700UF 20% 50V SNAP | 81% | View |
| 604D472G025JS7 | Vishay Sprague | CAP ALUM 4700UF 25V AXIAL | 78% | View |
| 16YK4700M16X25 | Rubycon | CAP ALUM 4700UF 20% 16V RADIAL | 72% | View |
| LKG1C472MESZCK | Nichicon | CAP ALUM 4700UF 20% 16V SNAP | 67% | View |
| 478CKH016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4700UF 20% 16V RADIAL | 62% | View |
