CAP ALUM 15000UF 20% 35V SNAP

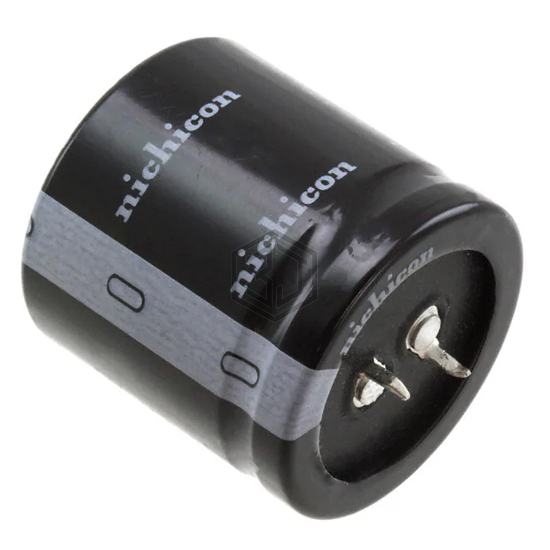

LLS1V153MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 15000UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 4,075
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.95 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.6925 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215637153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 40V SNAP | 92% | View |
| MAL205647153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 40V SNAP | 92% | View |
| 380LQ153M025J032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 15000UF 20% 25V SNAP | 87% | View |
| 35MXC15000MEFC35X35 | Rubycon | CAP ALUM 15000UF 20% 35V SNAP | 86% | View |
| MAL205156153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 25V RADIAL | 84% | View |
| ESMH500VNN153MA45W | United Chemi-Con | CAP ALUM 15000UF 20% 50V SNAP | 78% | View |
