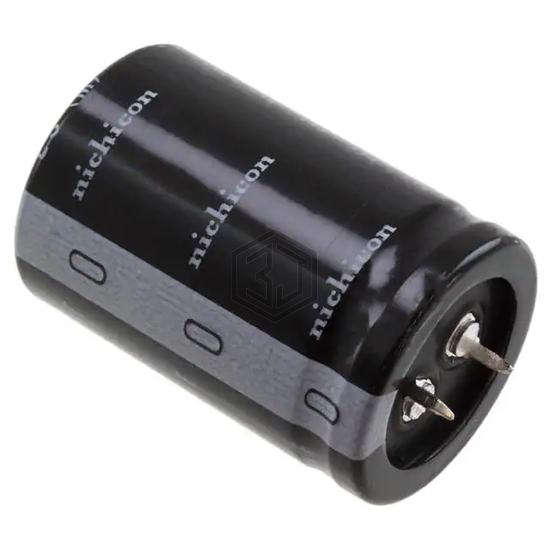

CAP ALUM 8200UF 20% 63V SNAP
LLS1J822MELB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 8200UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 9,780
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.12 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.888 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SLP822M063H4P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 63V SNAP | 95% | View |
| 380LX822M063K452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 63V SNAP | 92% | View |
| B41231C6828M000 | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 50V SNAP | 90% | View |
| LKSN2822MESB | Nichicon | CAP ALUM 8200UF 20% 56V SNAP | 85% | View |
| EKMH500VSN822MA35S | United Chemi-Con | CAP ALUM 8200UF 20% 50V SNAP | 74% | View |
| LKSA2822MESA | Nichicon | CAP ALUM 8200UF 20% 42V SNAP | 68% | View |
Submit your RFQ for LLS1J822MELB and get a quote within 24 hours.
