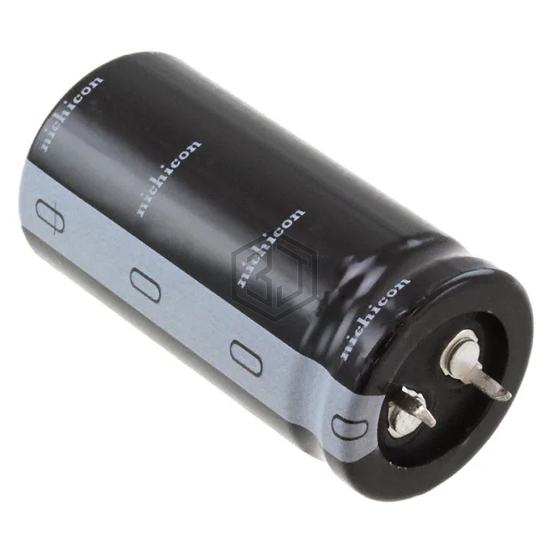

CAP ALUM 6800UF 20% 63V SNAP
LLS1J682MELA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 9,688
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.52 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.198 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SMH63VS682M30X40T2 | United Chemi-Con | CAP ALUM 6800UF 20% 63V SNAP | 98% | View |
| MAL205821682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 50V SNAP | 89% | View |
| MAL215831682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 50V SNAP | 88% | View |
| ESMH500VNN682MR35T | United Chemi-Con | CAP ALUM 6800UF 20% 50V SNAP | 84% | View |
| UVR1H682MRA6 | Nichicon | CAP ALUM 6800UF 20% 50V RADIAL | 78% | View |
| MAL205846682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 25V SNAP | 63% | View |
