CAP ALUM 4700UF 20% 63V SNAP

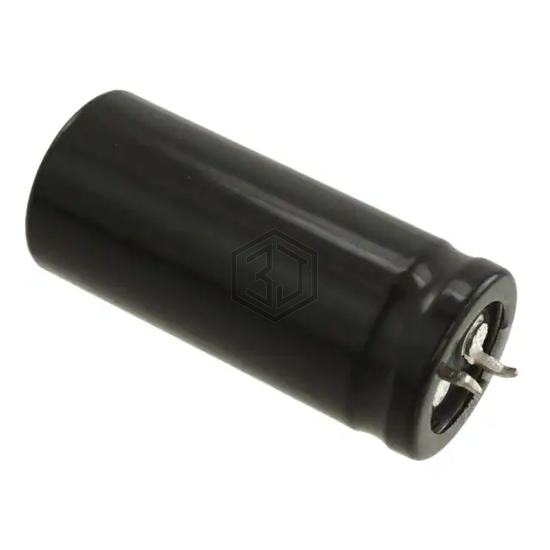

LLS1J472MELZ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 5,012
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.69 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.2435 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 80MXG4700MEFCSN30X35 | Rubycon | CAP ALUM 4700UF 20% 80V SNAP | 89% | View |
| ELXG630VSN472MA40S | United Chemi-Con | CAP ALUM 4700UF 20% 63V SNAP | 87% | View |
| EKZN100ELL472MK30S | United Chemi-Con | CAP ALUM 4700UF 20% 10V RADIAL | 71% | View |
| LKG1V472MESZBK | Nichicon | CAP ALUM 4700UF 20% 35V SNAP | 66% | View |
| VHT4700M35 | NTE Electronics, Inc | CAP ALUM 4700UF 20% 35V RADIAL | 62% | View |
| 860160380044 | Würth Elektronik | CAP ALUM 4700UF 20% 16V RADIAL | 59% | View |
