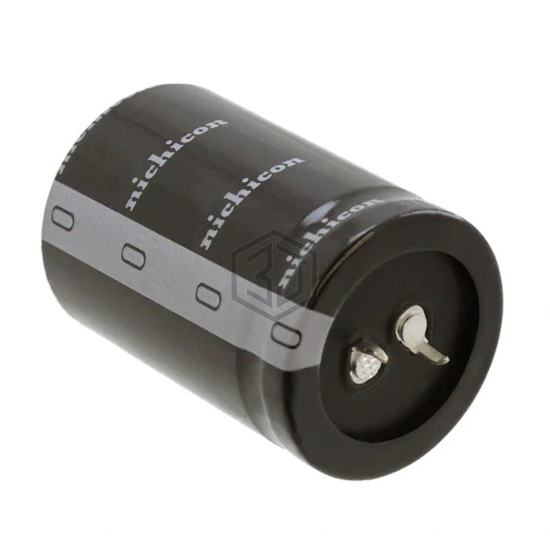

CAP ALUM 39000UF 20% 25V SNAP
LLS1E393MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 39000UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 2,945
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 39000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.56 A @ 120 Hz |
| Ripple Current @ High Frequency | 8.694 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41231A5399M002 | EPCOS - TDK Electronics | CAP ALUM 39000UF 20% 25V SNAP | 99% | View |
| ESMH250VSN393MA50U | United Chemi-Con | CAP ALUM 39000UF 20% 25V SNAP | 99% | View |
| 381LQ393M025K052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 39000UF 20% 25V SNAP | 87% | View |
| ECE-T1HA393FA | Panasonic Electronic Components | CAP ALUM 39000UF 20% 50V SNAP | 79% | View |
| SMH16VN393M30X45T2 | United Chemi-Con | CAP ALUM 39000UF 20% 16V SNAP | 74% | View |
| MALIEYH07CB539D02K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 39000UF 20% 16V SNAP | 69% | View |
Submit your RFQ for LLS1E393MELC and get a quote within 24 hours.
