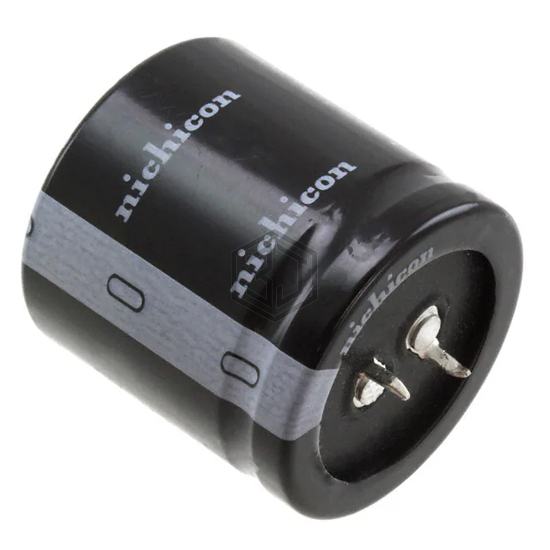

CAP ALUM 22000UF 20% 25V SNAP
LLS1E223MELC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22000UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 9,307
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.26 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.049 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKS1E223MESB | Nichicon | CAP ALUM 22000UF 20% 25V SNAP | 89% | View |
| 25MXC22000MEFCSN25X50 | Rubycon | CAP ALUM 22000UF 20% 25V SNAP | 87% | View |
| EKMH250VNN223MR45T | United Chemi-Con | CAP ALUM 22000UF 20% 25V SNAP | 86% | View |
| SLP223M035H9P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 22000UF 20% 35V SNAP | 78% | View |
| MAL205645223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 16V SNAP | 72% | View |
| MAL205844223E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22000UF 20% 10V SNAP | 68% | View |
