CAP ALUM 820UF 20% 450V SNAP

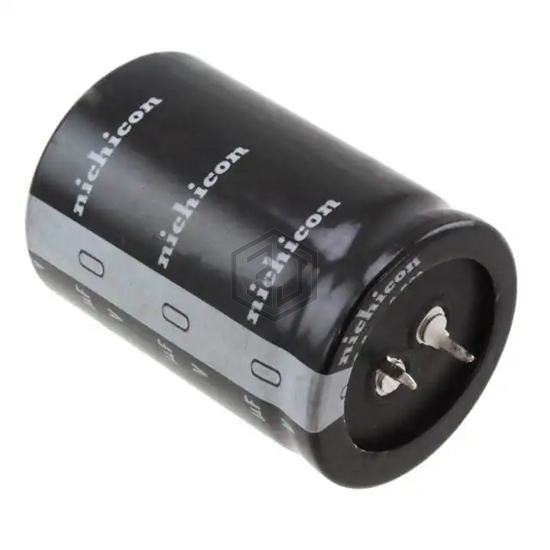

LLG2W821MELC50 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 820UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 3,771
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.29 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALC10A821DJ450 | KEMET | CAP ALUM 820UF 20% 450V SNAP | 100% | View |
| 450MXK820MEFCFA30X60 | Rubycon | CAP ALUM 820UF 20% 450V SNAP | 96% | View |
| B43305A5827M82 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 450V SNAP | 95% | View |
| GS2S821MND3550RY | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 90% | View |
| B43511C9827M80 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 400V SNAP | 83% | View |
| ESMQ251VSN821MA25W | United Chemi-Con | CAP ALUM 820UF 20% 250V SNAP | 79% | View |
Submit your RFQ for LLG2W821MELC50 and get a quote within 24 hours.
