CAP ALUM 680UF 20% 400V SNAP

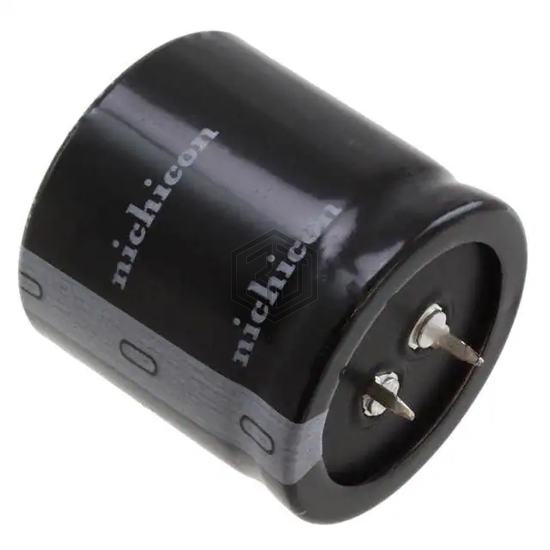

LLG2G681MELC35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 9,771
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.69 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.8467 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43305B9687M87 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 400V SNAP | 99% | View |
| ESMQ401VSN681MA40S | United Chemi-Con | CAP ALUM 680UF 20% 400V SNAP | 95% | View |
| EKMW401VSN681MR45S | United Chemi-Con | CAP ALUM 680UF 20% 400V SNAP | 92% | View |
| ALC80A681EF400 | KEMET | CAP ALUM 680UF 20% 400V SNAP | 76% | View |
| LLG2D681MELZ35 | Nichicon | CAP ALUM 680UF 20% 200V SNAP | 72% | View |
| MAL205742681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 200V SNAP | 68% | View |
Submit your RFQ for LLG2G681MELC35 and get a quote within 24 hours.
