CAP ALUM 470UF 20% 400V SNAP

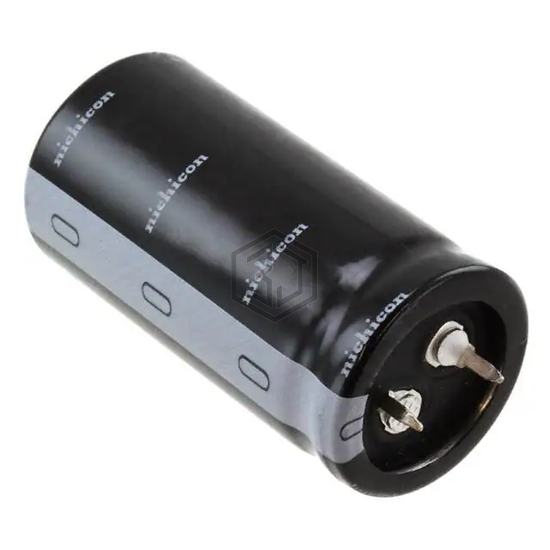

LLG2G471MELA50 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 1,472
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.13 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.0459 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400MXG470MEFCSN30X45 | Rubycon | CAP ALUM 470UF 20% 400V SNAP | 98% | View |
| 475MXH470MEFCSN30X60 | Rubycon | CAP ALUM 470UF 20% 475V SNAP | 94% | View |
| B43508B5477M002 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 450V SNAP | 91% | View |
| EKMH401VNN471MA45U | United Chemi-Con | CAP ALUM 470UF 20% 400V SNAP | 90% | View |
| 381LQ471M315K032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 315V SNAP | 72% | View |
| MAL215932471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 200V SNAP | 57% | View |
Submit your RFQ for LLG2G471MELA50 and get a quote within 24 hours.
