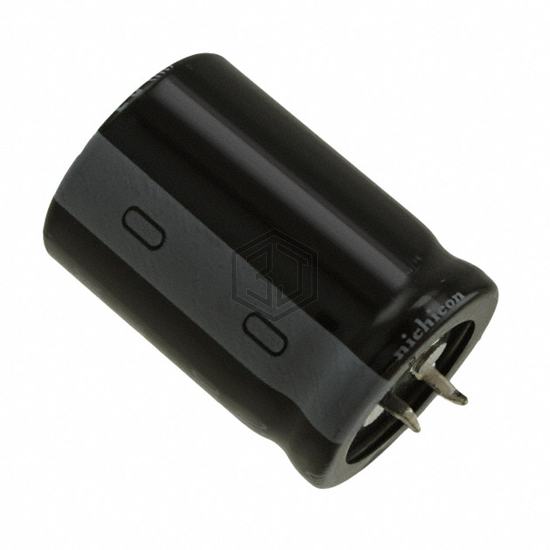

CAP ALUM 1000UF 20% 200V SNAP
LLG2D102MELA35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 6,940
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.55 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.825 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43544B2108M002 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 200V SNAP | 98% | View |
| EKHV351VSN981MA40S | Chemi-Con | CAP ALUM 980UF 20% 350V TH | 73% | View |
| PEH228MML3990QE4 | KEMET | CAP ALUM 990UF 63V SOLDER LUG TH | 63% | View |
| ALC40C102FL450 | KEMET | CAP ALUM 1000UF 20% 450V SNAP | 56% | View |
| LKG1H102MESABK | Nichicon | CAP ALUM 1000UF 20% 50V SNAP | 54% | View |
| THA981M100AC1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 980UF 20% 100V FLATPACK | 52% | View |
Submit your RFQ for LLG2D102MELA35 and get a quote within 24 hours.
