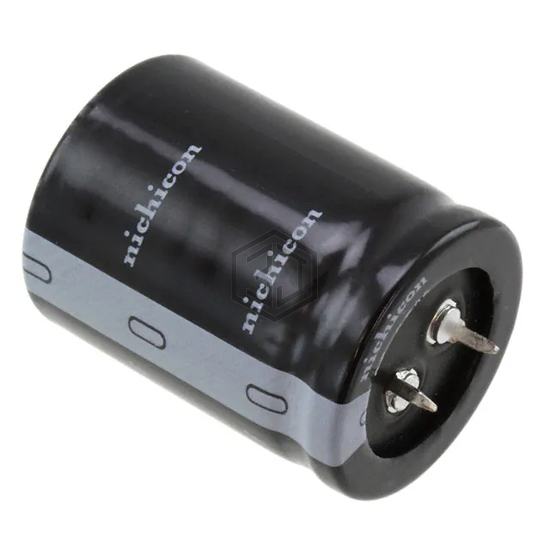

CAP ALUM 2200UF 20% 160V SNAP
LLG2C222MELB40 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 1,997
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.45 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.675 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LQ222M200A452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 200V SNAP | 80% | View |
| MAL209018222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 63V SNAP | 56% | View |
| 80MXC2200MEFCSN22X45 | Rubycon | CAP ALUM 2200UF 20% 80V SNAP | 56% | View |
| 25WXA2200M18X16 | Rubycon | CAP ALUM 2200UF 20% 25V RADIAL | 56% | View |
| 100VXG2200MEFC30X40 | Rubycon | CAP ALUM 2200UF 20% 100V SNAP | 52% | View |
| EGPA500ELL222MM35S | United Chemi-Con | CAP ALUM 2200UF 20% 50V RADIAL | 51% | View |
Submit your RFQ for LLG2C222MELB40 and get a quote within 24 hours.
