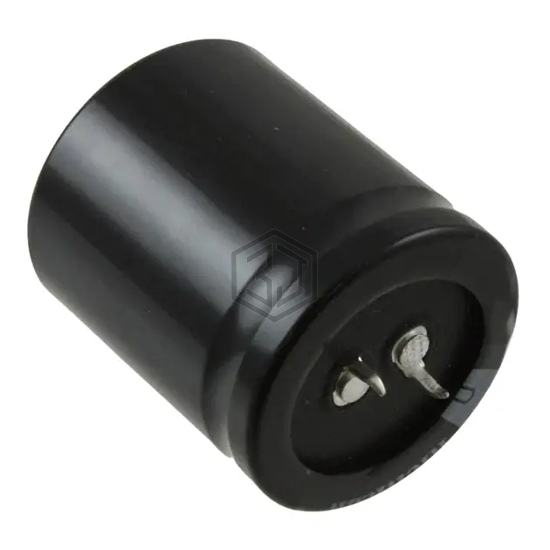

CAP ALUM 390UF 20% 450V SNAP
LKX2W391MESC40 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 1,758
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 1.61 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.3023 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMZ451VSN391MQ45S | United Chemi-Con | CAP ALUM 390UF 20% 450V SNAP | 98% | View |
| B43547A6397M080 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 500V SNAP | 85% | View |
| LGN2V391MELB35 | Nichicon | CAP ALUM 390UF 20% 350V SNAP | 82% | View |
| LGW2W391MELC40 | Nichicon | CAP ALUM 390UF 20% 450V SNAP | 80% | View |
| ELXS251VSN391MQ25S | United Chemi-Con | CAP ALUM 390UF 20% 250V SNAP | 77% | View |
| 63ZLJ390MGA12.5X20 | Rubycon | CAP ALUM 390UF 20% 63V RADIAL | 66% | View |
