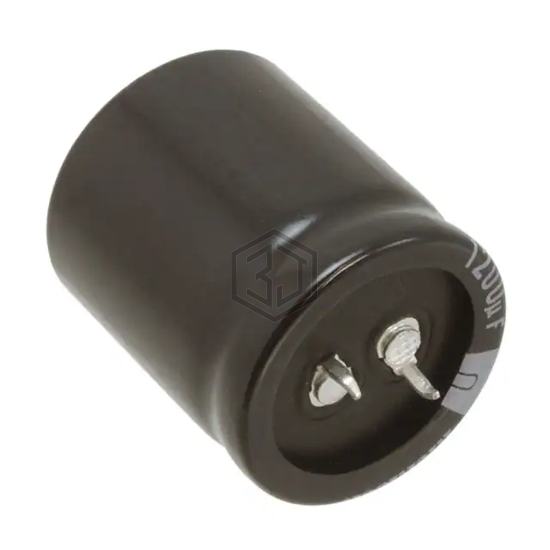

CAP ALUM 220UF 20% 450V SNAP
LKX2W221MESB35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 8,208
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 1.05 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL209427221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 450V SNAP | 96% | View |
| EKMH351VNN221MQ40M | United Chemi-Con | CAP ALUM 220UF 20% 350V SNAP | 89% | View |
| 420MXK220MEFC25X30 | Rubycon | CAP ALUM 220UF 20% 420V SNAP | 89% | View |
| EKMS3B1VSN221MQ25S | United Chemi-Con | CAP ALUM 220UF 20% 315V SNAP | 84% | View |
| EEU-FS1H221L | Panasonic Electronic Components | CAP ALUM 220UF 20% 50V RADIAL | 70% | View |
| 200TXW220MEFR16X30 | Rubycon | CAP ALUM 220UF 20% 200V RADIAL | 70% | View |
Submit your RFQ for LKX2W221MESB35 and get a quote within 24 hours.
