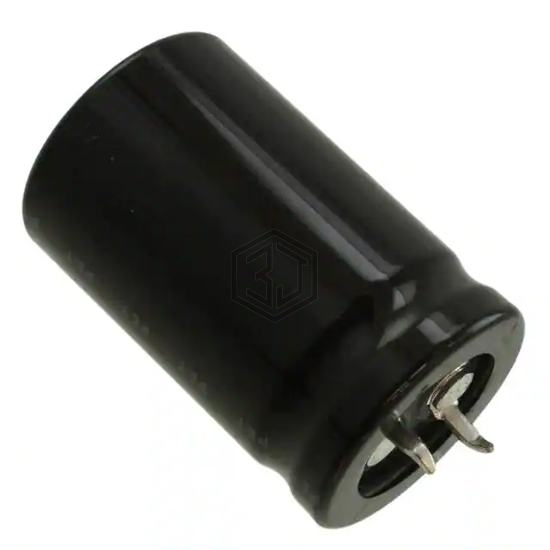

CAP ALUM 120UF 20% 450V SNAP
LKX2W121MESZ35 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 1,377
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 720 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.0296 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMW451VSN121MP25S | United Chemi-Con | CAP ALUM 120UF 20% 450V SNAP | 96% | View |
| EKMH401VNN121MR25U | United Chemi-Con | CAP ALUM 120UF 20% 400V SNAP | 94% | View |
| LQSW6121MELZ30 | Nichicon | CAP ALUM 120UF 20% 420V SNAP | 92% | View |
| 350MXC120MEFC25X25 | Rubycon | CAP ALUM 120UF 20% 350V SNAP | 91% | View |
| EKXG401ELL121MMP1S | United Chemi-Con | CAP ALUM 120UF 20% 400V RADIAL | 77% | View |
| 860040774007 | Würth Elektronik | CAP ALUM 120UF 20% 63V RADIAL | 62% | View |
