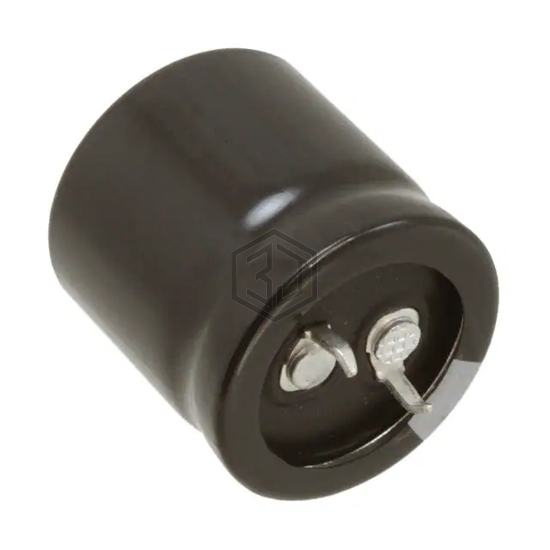

CAP ALUM 100UF 20% 450V SNAP
LKX2W101MESA25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 7,997
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 690 mA @ 120 Hz |
| Ripple Current @ High Frequency | 986.7 mA @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215937101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 450V SNAP | 98% | View |
| LGUW6101MELZ | Nichicon | CAP ALUM 100UF 20% 420V SNAP | 97% | View |
| EKWA421ELL101MU40S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 96% | View |
| 400MXC100MEFCSN25X25 | Rubycon | CAP ALUM 100UF 20% 400V SNAP | 91% | View |
| EEU-EB2E101SB | Panasonic Electronic Components | CAP ALUM 100UF 20% 250V RADIAL | 76% | View |
| 250BXC100MEFC16X25 | Rubycon | CAP ALUM 100UF 20% 250V RADIAL | 72% | View |
Submit your RFQ for LKX2W101MESA25 and get a quote within 24 hours.
