CAP ALUM 560UF 20% 400V SNAP

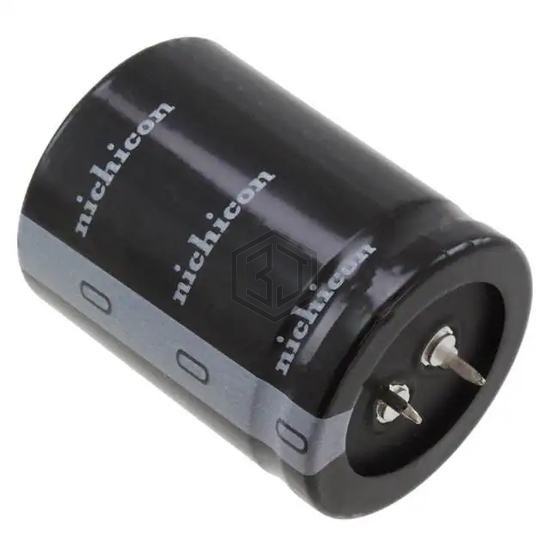

LKX2G561MESC45 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 5,017
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 1.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.717 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LSM561M2W---3550S | Surge | CAP ALUM 450V POLAR | 94% | View |
| LGG2G561MELB45 | Nichicon | CAP ALUM 560UF 20% 400V SNAP | 93% | View |
| B43644E5567M067 | EPCOS - TDK Electronics | SNAP-IN 560UF 450V | 88% | View |
| 250MXC560MEFCSN25X40 | Rubycon | CAP ALUM 560UF 20% 250V SNAP | 84% | View |
| B43508F2567M60 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 75% | View |
| 381LX561M160J022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 160V SNAP | 67% | View |
