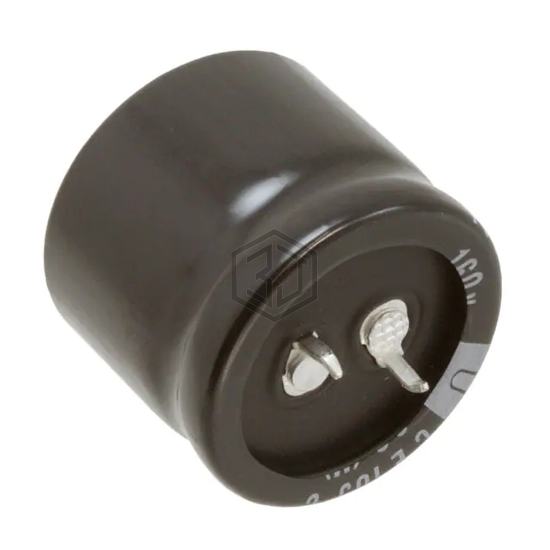

CAP ALUM 470UF 20% 250V SNAP
LKX2E471MESB25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 8,268
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 1.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.1 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 220MXC470MEFCSN30X25 | Rubycon | CAP ALUM 470UF 20% 220V SNAP | 93% | View |
| LDQ2D471MERZGA | Nichicon | CAP ALUM 470UF 20% 200V RADIAL | 92% | View |
| 180MXC470MEFCSN25X25 | Rubycon | CAP ALUM 470UF 20% 180V SNAP | 89% | View |
| MAL211948471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 63V AXIAL | 64% | View |
| EK1V471MP51016EU | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 61% | View |
| EEU-FM1C471 | Panasonic Electronic Components | CAP ALUM 470UF 20% 16V RADIAL | 57% | View |
