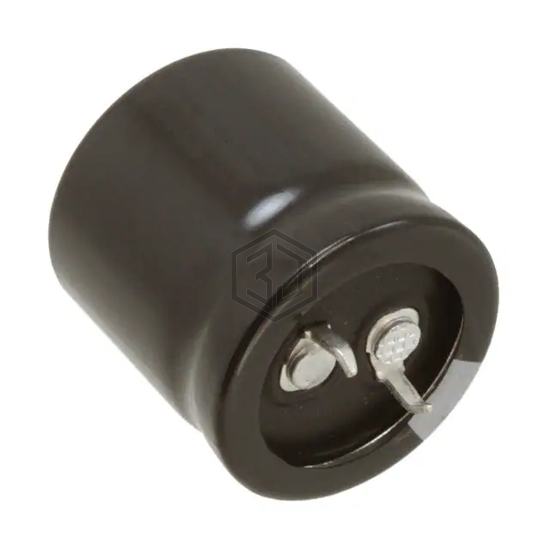

CAP ALUM 390UF 20% 200V SNAP
LKX2D391MESA25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 1,741
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 1.31 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.965 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMZ421VSN391MP55S | United Chemi-Con | CAP ALUM 390UF 20% 420V SNAP | 70% | View |
| EGXF101ELL391MK40S | United Chemi-Con | CAP ALUM 390UF 20% 100V RAD TH | 67% | View |
| B43504E0397M002 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 420V SNAP | 63% | View |
| EEU-FK1V391B | Panasonic Electronic Components | CAP ALUM 390UF 20% 35V RADIAL TH | 60% | View |
| EEU-FC1V391B | Panasonic Electronic Components | CAP ALUM 390UF 20% 35V RADIAL | 59% | View |
| 672D397H020DM5J | Vishay Sprague | CAP ALUM 390UF 20V RADIAL | 56% | View |
Submit your RFQ for LKX2D391MESA25 and get a quote within 24 hours.
