CAP ALUM 2200UF 20% 56V SNAP

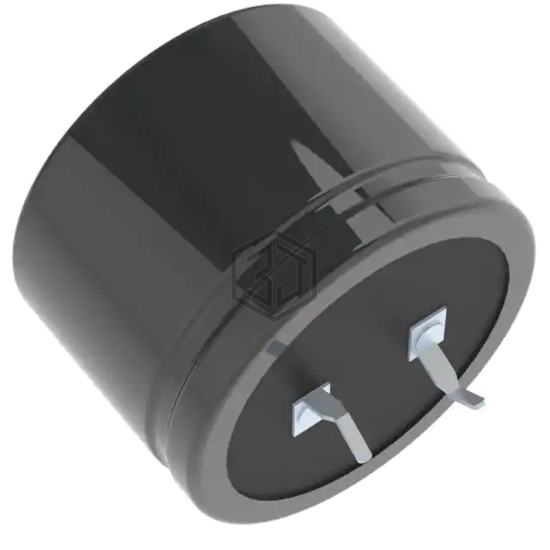

LKSN2222MESB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 56V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 56 V, package / case Radial, Can - Snap-In.
In Stock: 9,776
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 56 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 1.85 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGY1H222MELZ25 | Nichicon | CAP ALUM 2200UF 20% 50V SNAP | 86% | View |
| 25YXS2200MEFC16X20 | Rubycon | CAP ALUM 2200UF 20% 25V RADIAL | 70% | View |
| 6.3ZLG2200MEFCT810X23 | Rubycon | CAP ALUM 2200UF 20% 6.3V RADIAL | 68% | View |
| KY25VB222M18X20LL | United Chemi-Con | CAP ALUM 2200UF 20% 25V RADIAL | 67% | View |
| 381LQ222M100H452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 100V SNAP | 65% | View |
| 25WA2200MEFC16X20 | Rubycon | CAP ALUM 2200UF 20% 25V RADIAL | 62% | View |
