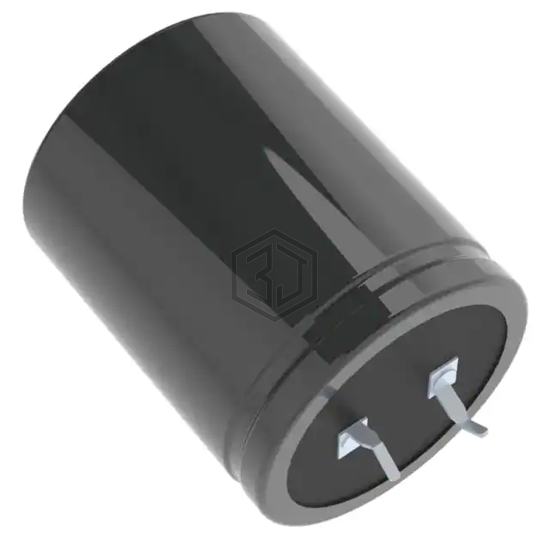

CAP ALUM 6800UF 20% 71V SNAP
LKSH2682MESC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 71V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 71 V, package / case Radial, Can - Snap-In.
In Stock: 3,391
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 71 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 4.05 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESMH500VNN682MP50U | United Chemi-Con | CAP ALUM 6800UF 20% 50V SNAP | 84% | View |
| MALIEYN07AB468H02K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 50V SNAP | 80% | View |
| 381LX682M050K042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 50V SNAP | 79% | View |
| MALIEYN07LB468F42K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 35V SNAP | 69% | View |
| UHW1A682MHD | Nichicon | CAP ALUM 6800UF 20% 10V RADIAL | 62% | View |
| LPW682M1EN35V-W | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 25V SNAP | 60% | View |
Submit your RFQ for LKSH2682MESC and get a quote within 24 hours.
