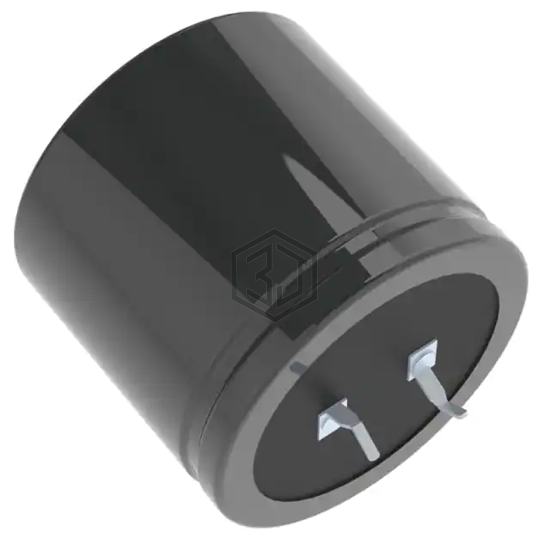

CAP ALUM 4700UF 20% 71V SNAP
LKSH2472MESC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 71V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 71 V, package / case Radial, Can - Snap-In.
In Stock: 2,288
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 71 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 3.4 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 380LX472M063J032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 4700UF 20% 63V SNAP | 90% | View |
| LLS1K472MELA | Nichicon | CAP ALUM 4700UF 20% 80V SNAP | 88% | View |
| LKG1H472MESYAK | Nichicon | CAP ALUM 4700UF 20% 50V SNAP | 79% | View |
| MAL215849472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 100V SNAP | 78% | View |
| ESMH101VSN472MA40S | United Chemi-Con | CAP ALUM 4700UF 20% 100V SNAP | 73% | View |
| LKG1C472MESZCK | Nichicon | CAP ALUM 4700UF 20% 16V SNAP | 65% | View |
Submit your RFQ for LKSH2472MESC and get a quote within 24 hours.
