CAP ALUM 1200UF 20% 71V SNAP

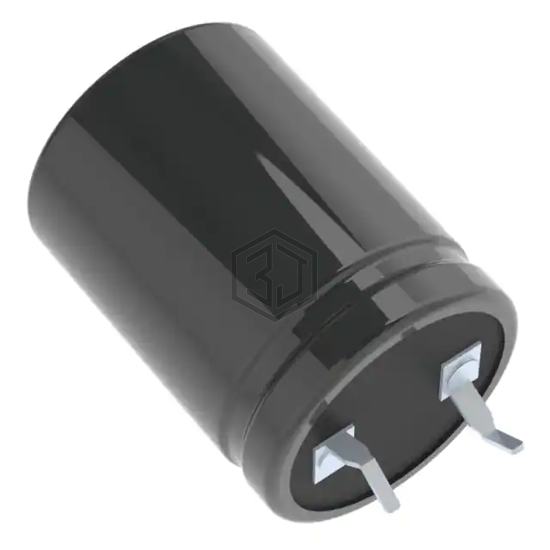

LKSH2122MESY is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1200UF 20% 71V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 71 V, package / case Radial, Can - Snap-In.
In Stock: 9,543
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 71 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 1.6 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKG1K122MESCCK | Nichicon | CAP ALUM 1200UF 20% 80V SNAP | 75% | View |
| B41691A7128Q001 | EPCOS - TDK Electronics | CAP ALUM 1200UF 40V AXIAL | 63% | View |
| LGG2Z122MELZ50 | Nichicon | CAP ALUM 1200UF 20% 180V SNAP | 62% | View |
| UPA1A122MPD1TD | Nichicon | CAP ALUM 1200UF 20% 10V RADIAL | 57% | View |
| MAL209626122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 400V SNAP | 56% | View |
| LGU2P122MELC | Nichicon | CAP ALUM 1200UF 20% 220V SNAP | 56% | View |
