CAP ALUM 2700UF 20% 100V SNAP

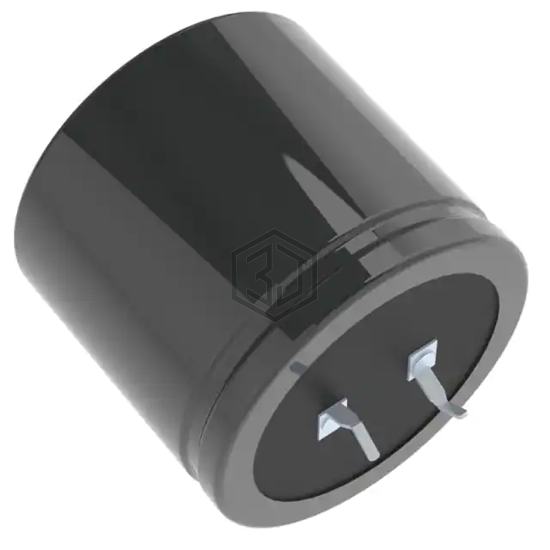

LKS2A272MESC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2700UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 1,861
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 3.2 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKS2A272MESA | Nichicon | CAP ALUM 2700UF 20% 100V SNAP | 100% | View |
| LKG1J272MESBCK | Nichicon | CAP ALUM 2700UF 20% 63V SNAP | 80% | View |
| 63USC2700MEFCSN25X25 | Rubycon | CAP ALUM 2700UF 20% 63V SNAP | 73% | View |
| ELXZ350ELL272ML35S | United Chemi-Con | CAP ALUM 2700UF 20% 35V RADIAL | 62% | View |
| EKZE160EC3272ML20S | United Chemi-Con | CAP ALUM 2700UF 20% 16V RADIAL | 61% | View |
| B41858C7278M000 | EPCOS - TDK Electronics | CAP ALUM 2700UF 20% 35V RADIAL | 56% | View |
