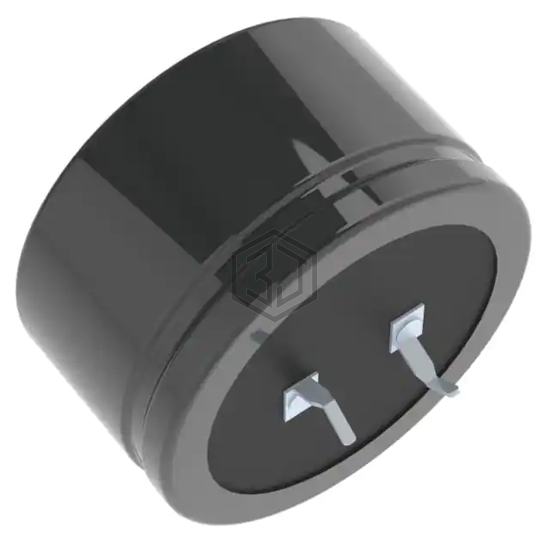

CAP ALUM 6800UF 20% 35V SNAP
LKS1V682MESC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 2,404
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 2.5 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TVX1V682MDD | Nichicon | CAP ALUM 6800UF 20% 35V AXIAL | 100% | View |
| MALIEYH07AA468F42K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 35V SNAP | 97% | View |
| B41252A6688M000 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 50V SNAP | 73% | View |
| ELXZ100ELL682ML30S | United Chemi-Con | CAP ALUM 6800UF 20% 10V RADIAL | 71% | View |
| 688LBB016M2BC | Cornell Dubilier / Illinois Capacitor | CAP ALUM 6800UF 20% 16V SNAP | 70% | View |
| MAL215034682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 10V RADIAL | 67% | View |
