CAP ALUM 4700UF 20% 80V SNAP

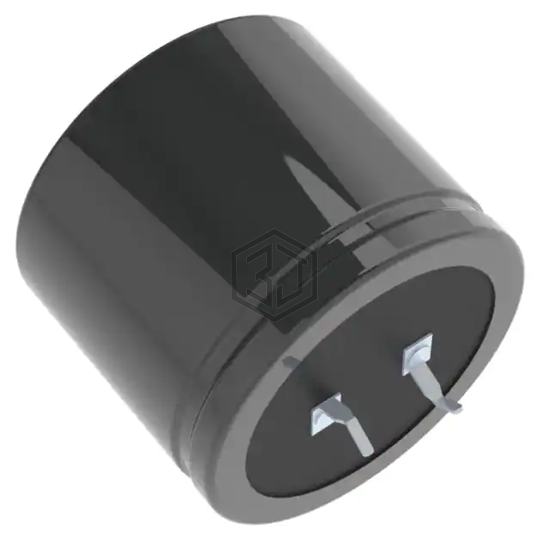

LKS1K472MESC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 4,507
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 3.6 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41505A0478M000 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 80V SNAP | 100% | View |
| 478LBB080M2CH | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4700UF 20% 80V SNAP | 96% | View |
| MAL205059472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 100V RADIAL | 73% | View |
| LKG1V472MESCCK | Nichicon | CAP ALUM 4700UF 20% 35V SNAP | 71% | View |
| 478CKS035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4700UF 20% 35V RADIAL | 70% | View |
| ELXZ160ELL472ML30S | United Chemi-Con | CAP ALUM 4700UF 20% 16V RADIAL | 60% | View |
Submit your RFQ for LKS1K472MESC and get a quote within 24 hours.
