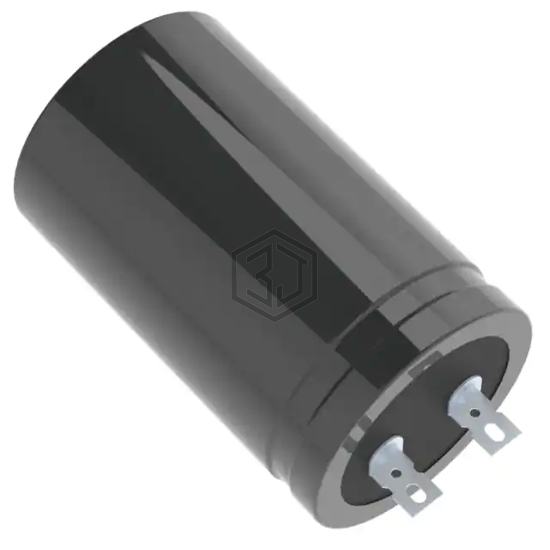

CAP ALUM 6800UF 20% 100V SOLDER
LKG2A682MKZ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 100V SOLDER. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Solder Lug.
In Stock: 3,017
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 6.2 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.709" (18.00mm) |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 3.268" (83.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Solder Lug |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXG800VND682MA50U | United Chemi-Con | CAP ALUM 6800UF 20% 80V SNAP | 86% | View |
| MAL215878682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 63V SNAP | 74% | View |
| 688LMB063M2DH | Cornell Dubilier / Illinois Capacitor | CAP ALUM 6800UF 20% 63V SNAP | 66% | View |
| MAL216257682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 40V SNAP | 62% | View |
| VHT6800M35 | NTE Electronics, Inc | CAP ALUM 6800UF 20% 35V RADIAL | 56% | View |
| ESMH500VSN682MP50U | United Chemi-Con | CAP ALUM 6800UF 20% 50V SNAP | 56% | View |
