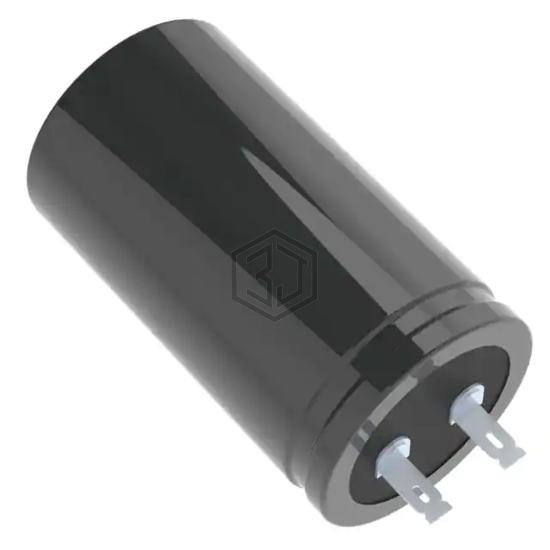

CAP ALUM 6800UF 20% 100V SOLDER
LKG2A682MKNF is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 100V SOLDER. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Solder Lug.
In Stock: 8,228
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 5.1 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.551" (14.00mm) |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 2.795" (71.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Solder Lug |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100USC6800MEFC35X50 | Rubycon | CAP ALUM 6800UF 20% 100V SNAP | 95% | View |
| MAL215838682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 63V SNAP | 81% | View |
| ELG688M063AS5AA | KEMET | CAP ALUM 6800UF 20% 63V SNAP | 70% | View |
| EKMH630VSN682MA40U | United Chemi-Con | CAP ALUM 6800UF 20% 63V SNAP | 70% | View |
| SLPX682M050E5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 50V SNAP | 63% | View |
| LKG1E682MESCCK | Nichicon | CAP ALUM 6800UF 20% 25V SNAP | 62% | View |
Submit your RFQ for LKG2A682MKNF and get a quote within 24 hours.
