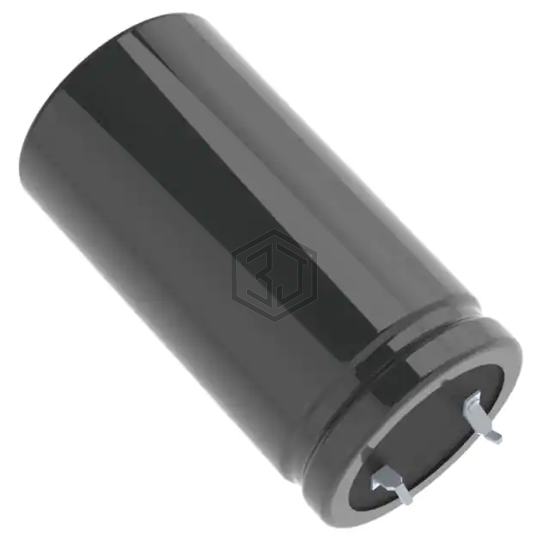

CAP ALUM 1200UF 20% 100V SNAP
LKG2A122MESZAK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1200UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 4,353
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 2.2 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKG1K122MESZAK | Nichicon | CAP ALUM 1200UF 20% 80V SNAP | 87% | View |
| LLG2C122MELA35 | Nichicon | CAP ALUM 1200UF 20% 160V SNAP | 68% | View |
| B43508A2128M62 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 200V SNAP | 68% | View |
| B43305C2128M62 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 200V SNAP | 67% | View |
| LGU2E122MELC | Nichicon | CAP ALUM 1200UF 20% 250V SNAP | 66% | View |
| EEU-FC1V122B | Panasonic Electronic Components | CAP ALUM 1200UF 20% 35V RADIAL | 64% | View |
