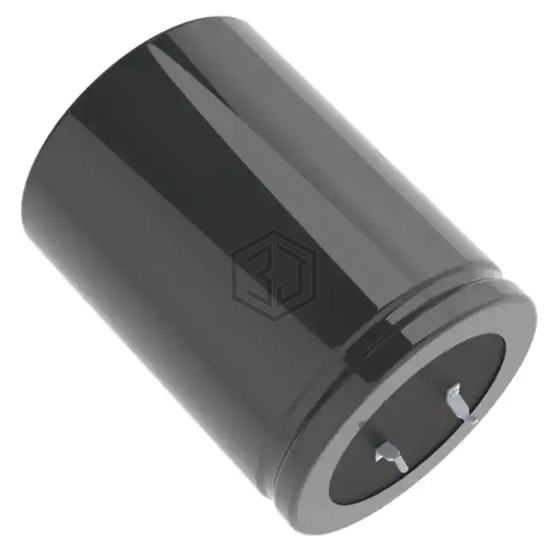

CAP ALUM 5600UF 20% 35V SNAP
LKG1V562MESCCK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 5600UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 7,696
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 3.8 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 380LX562M035J012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 5600UF 20% 35V SNAP | 96% | View |
| 380LX562M050J032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 5600UF 20% 50V SNAP | 82% | View |
| EKMH350VNN562MR25S | United Chemi-Con | CAP ALUM 5600UF 20% 35V SNAP | 79% | View |
| LGU1H562MELB | Nichicon | CAP ALUM 5600UF 20% 50V SNAP | 77% | View |
| ELBG250ETD562ALN3S | United Chemi-Con | CAP ALUM 5600UF 25V RADIAL | 75% | View |
| EKMH500VNN562MQ40U | United Chemi-Con | CAP ALUM 5600UF 20% 50V SNAP | 74% | View |
Submit your RFQ for LKG1V562MESCCK and get a quote within 24 hours.
