CAP ALUM 15000UF 20% 35V SNAP

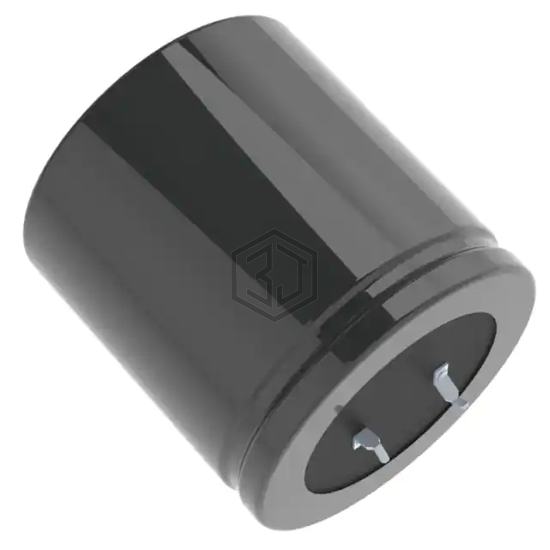

LKG1V153MESCAK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 15000UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 3,278
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 3.8 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 159LBB035M2CH | Cornell Dubilier / Illinois Capacitor | CAP ALUM 15000UF 20% 35V SNAP | 94% | View |
| 380LX153M025J032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 15000UF 20% 25V SNAP | 80% | View |
| 25MXC15000MEFC22X45 | Rubycon | CAP ALUM 15000UF 20% 25V SNAP | 80% | View |
| LGY1E153MELA45 | Nichicon | CAP ALUM 15000UF 20% 25V SNAP | 77% | View |
| EKMH500VNN153MA50S | United Chemi-Con | CAP ALUM 15000UF 20% 50V SNAP | 77% | View |
| LKSN2153MESC | Nichicon | CAP ALUM 15000UF 20% 56V SNAP | 73% | View |
