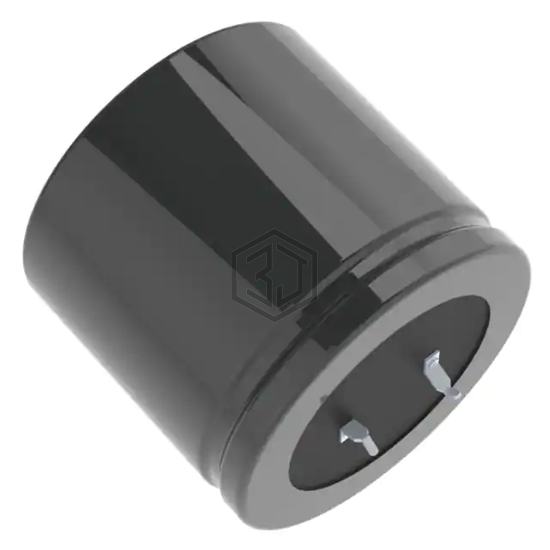

CAP ALUM 3300UF 20% 80V SNAP
LKG1K332MESCAK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 80V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Snap-In.
In Stock: 3,363
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 3.2 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225652332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 80V SNAP | 100% | View |
| LGU1K332MELC | Nichicon | CAP ALUM 3300UF 20% 80V SNAP | 95% | View |
| 381LX332M080J052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 20% 80V SNAP | 93% | View |
| LKSH2332MESA | Nichicon | CAP ALUM 3300UF 20% 71V SNAP | 90% | View |
| LKSH2332MESB | Nichicon | CAP ALUM 3300UF 20% 71V SNAP | 90% | View |
| EGPA350ELL332ML40S | United Chemi-Con | CAP ALUM 3300UF 20% 35V RADIAL | 69% | View |
